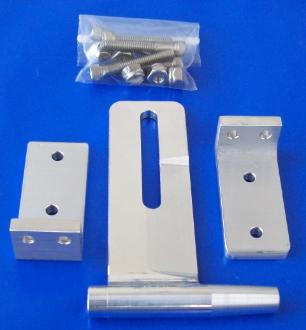

| BSA-100 Bullet Strut Assembly |
| Made from 6061-T6 aircraft quality aluminum. Designed for 1/4 inch shaft and the 1/4 inch bushing. Accu-Tech RC Hardware recommends you use a 5/16th brass tube. Strut total length = 3 and 5/8 inches Strut width = 1 and 3/16 inches Strut tube = 2 and 3/8 inches long Bracket length = 2 inches Bracket width = 7/8 inch (slim line) Bracket has built in adjustability from transom to leading edge of strut (as shown in picture) |
| Accu-Tech RC Hardware Recommended Strut Setup |
| The 5/16 inch brass tube must go completely through the strut and the end of the brass tube must be flush with the end of the strut. Next insert the bushing into the brass tube and strut. The bushing will not be completely flush with the end of the strut due to the collar on the bushing. Accu-Tech RC Hardware recommends approximately 1/4 inch space from the end of the collar of the bushing to the beginning of the drive dog which is on the shaft. |
1/4 inch bushing
| 5/16 inch brass tube |
